Visual Delivery Platform for Digital Twin of Pipelines in an Oil and Gas Project
────
The platform uses digital means to construct a twin scenario for the entire process of oil and gas projects, supporting the lightweight loading of multi - format models such as rvt and dgn and zero - code scenario design;It supports intelligent P&ID and hotspot - enabled non - intelligent P&ID.

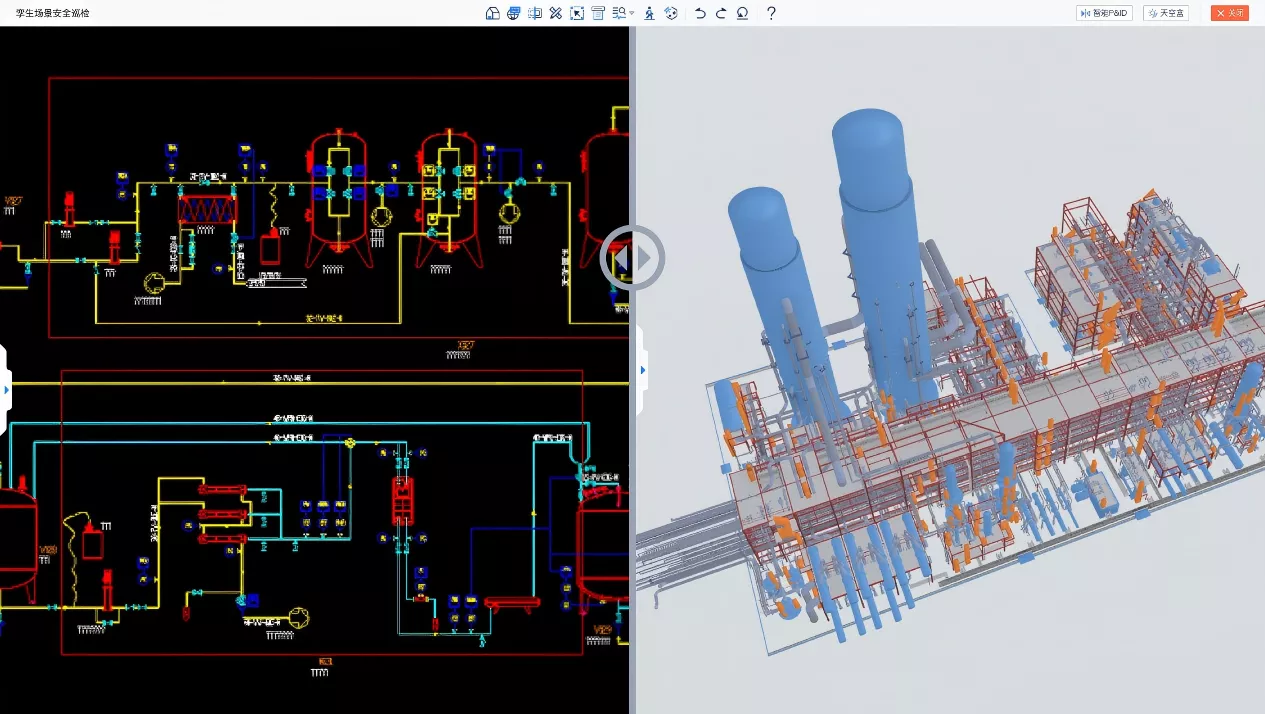

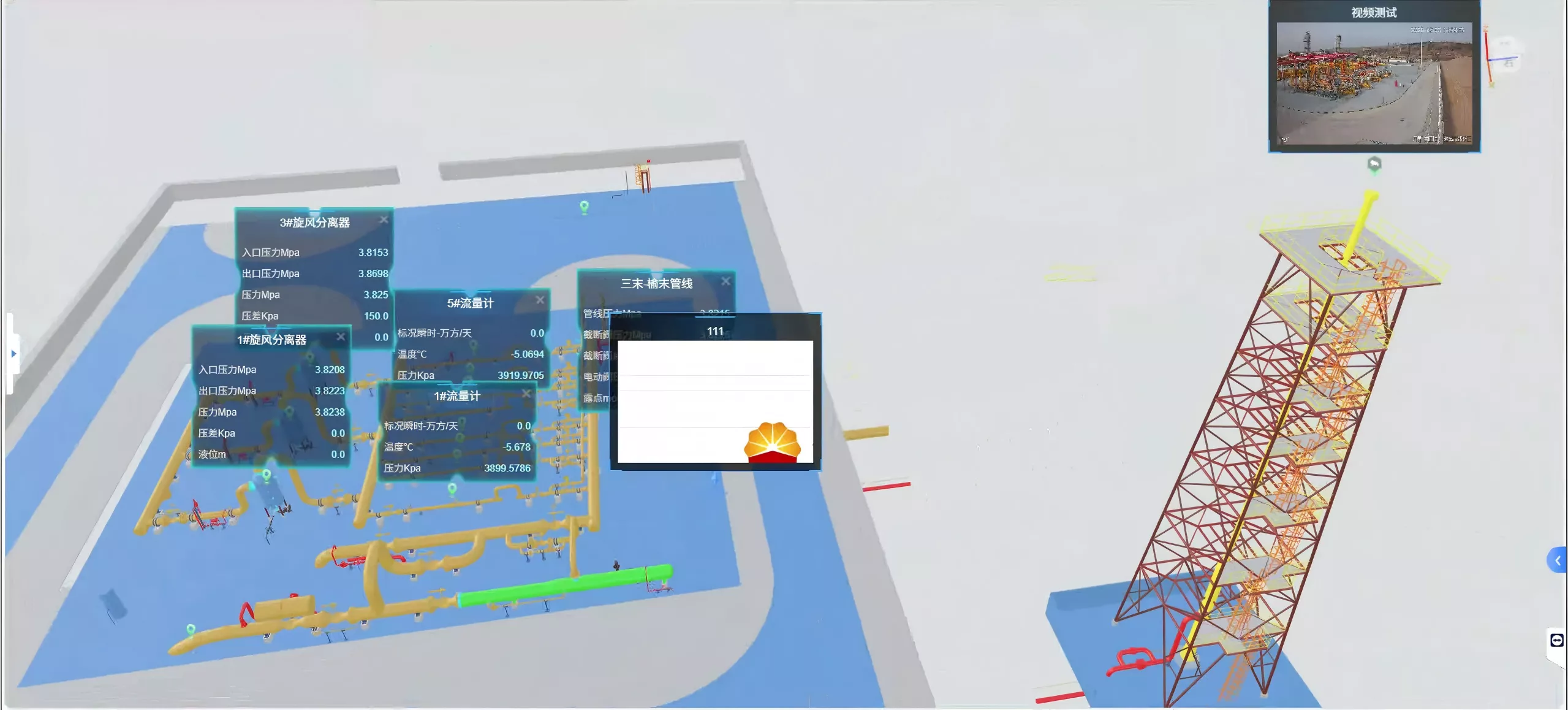

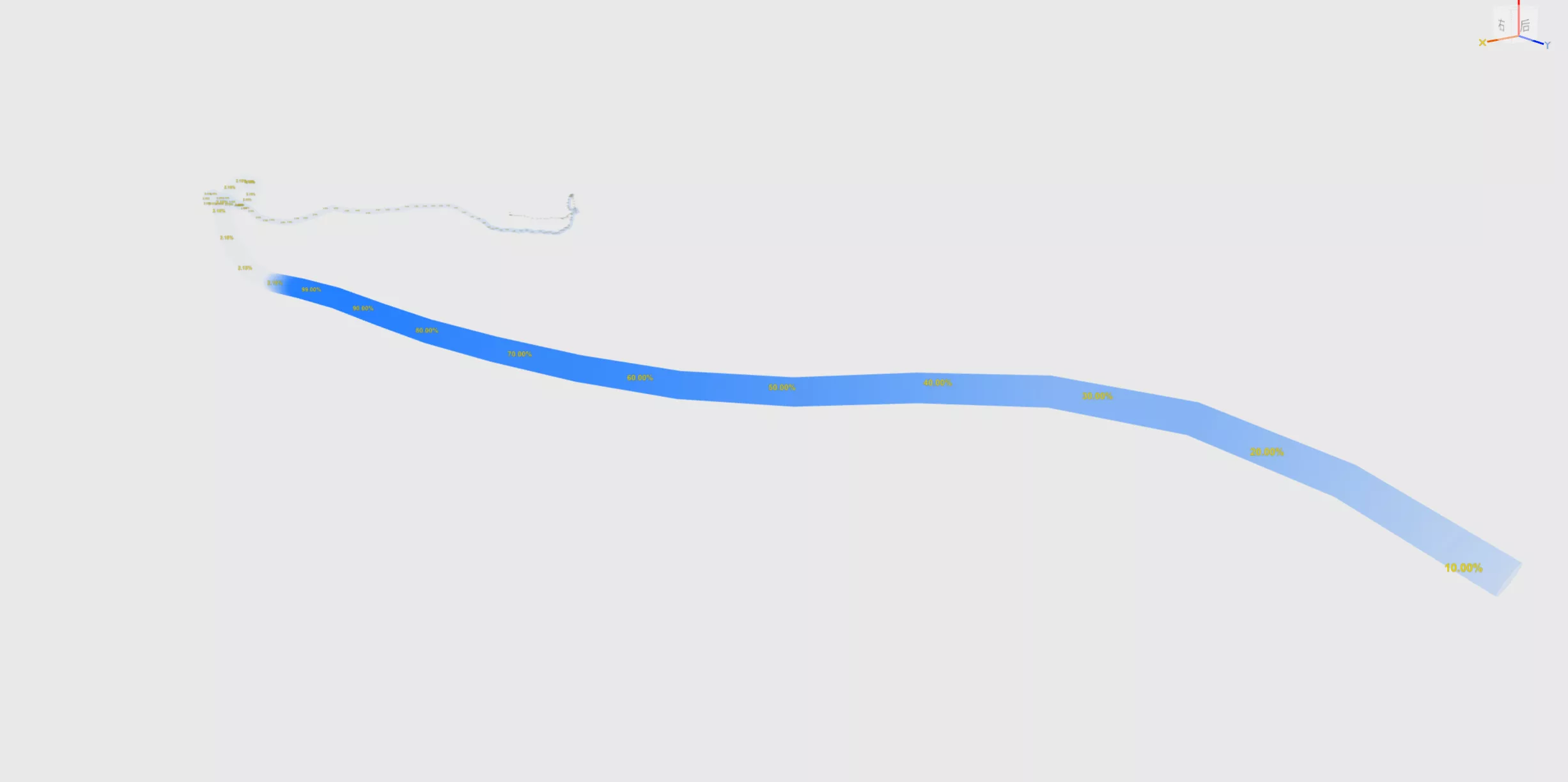

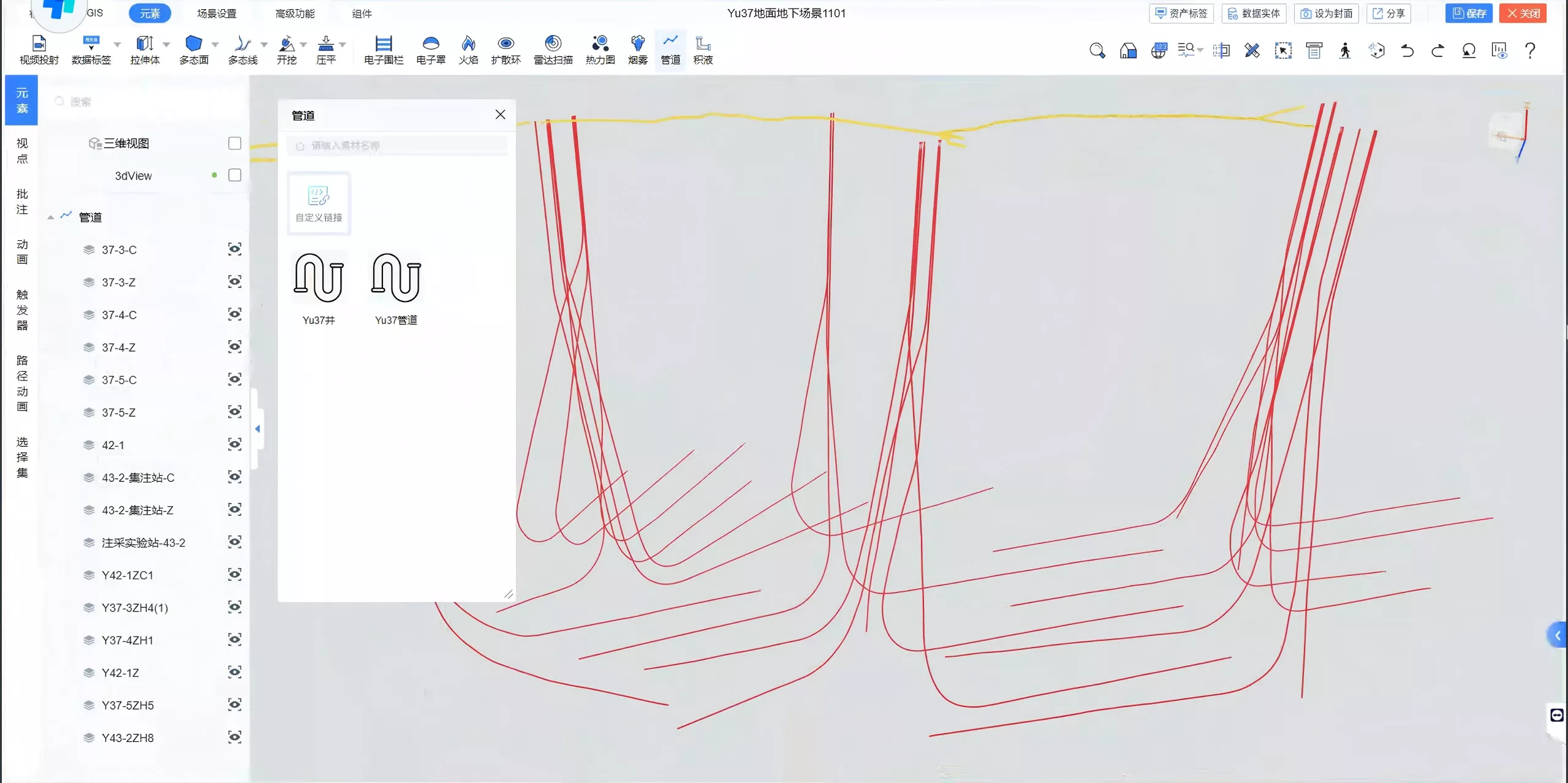

It can conveniently query the attributes and documents of associated models based on the tree - like navigation of P&ID drawings.Meanwhile, it can automatically generate a 3D pipeline model based on coordinates, monitor the fluid ratio in real - time, and dynamically present it through color and digital labels.It integrates the visual tracking of the pigging process to monitor the liquid removal status;Relying on the Internet of Things protocol, the platform realizes the digital management of equipment assets and the projection of real - time data in the twin scenario, facilitating the full - process transparent management and intelligent operation and maintenance of oil and gas transportation.
